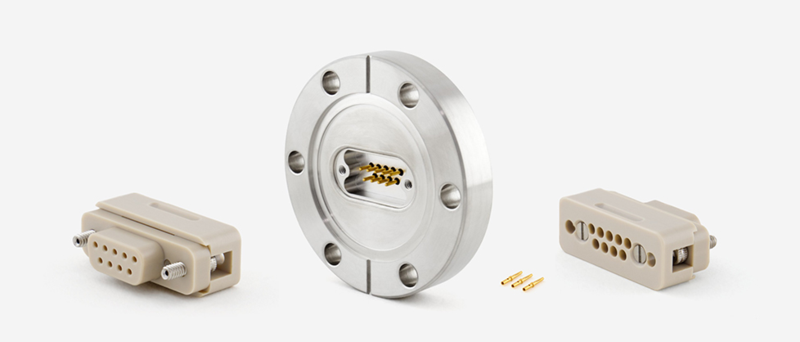

CF35 真空电极 SubD9

产品详情

20210903

 英国AML真空电极Feedthrough-1

20210903

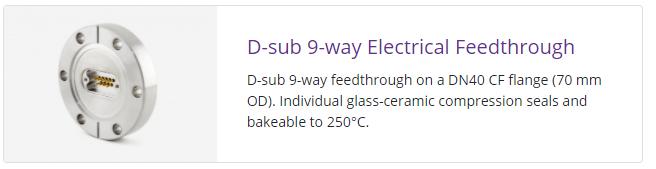

Overview

  • 9-way feedthrough on a DN40 CF flange (70mm OD) suitable for use in UHV

  • Suitable for use to 1.3 x 10-10 mBar (1 x 10-10 Torr)

  • Male to male connection

  • Bakeable to 250°C

  • 1.01mm gold plated pins

  • Rating. 500V, 5 A per pin (max 20% of pins)

20210903

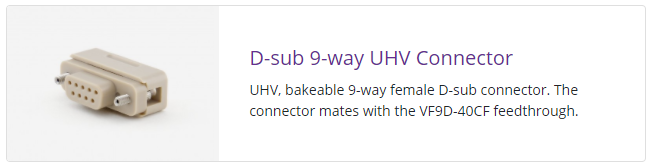

UHV, bakeable 9-way female D-sub connector. The connector mates with the VF9D-40CF feedthrough.

Overview

  • 9-way D-sub female connector suitable for use in UHV

  • Suitable for use to 1.3 x 10-10 mBar (1 x 10-10 Torr)

  • PEEK construction

  • Bakeable to 250 °C

  • Mates with the VF9D-40CF electrical feedthrough

  • Includes gold plated pin connectors

20210903

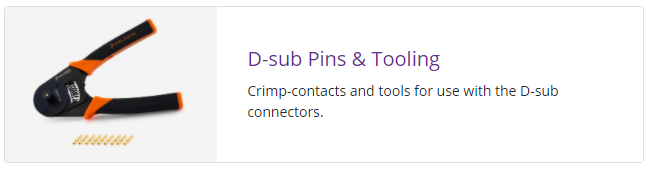

Crimp-contacts and tools for use with the D-sub connectors.

Overview

  • Bag of 10 replacement d-sub female pins

  • 20-24 AWG

  • UHV compatible

  • For use with VC9DF connector

  • Crimp tool


订货编号
VF9D-40CF
D-sub 9-way Electrical Feedthrough
VC9DFD-sub 9-way Female UHV Connector
VCDSKTD-sub Female Crimp Sockets. Bag of 10
