CF63 真空电极 SubD15

‍英国AML真空电极Feedthrough-1

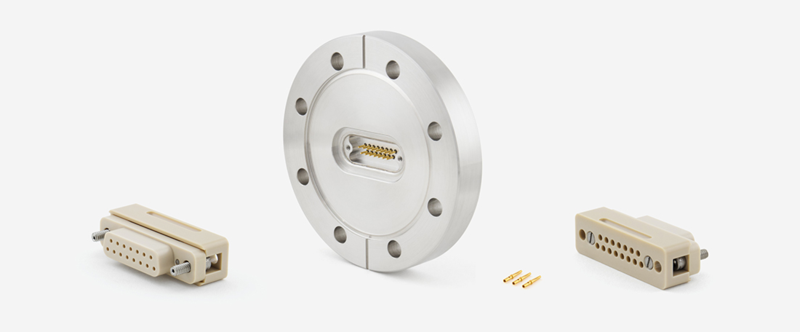

D-sub 15-way feedthrough on a DN63CF Flange (114 mm OD). Individual glass-ceramic compression seals and bakeable to 250°C.

Overview

• 15-way feedthrough on a DN63CF flange (114 mm OD) suitable for use in UHV

• Suitable for use to 1.3 x 10-10 mBar (1 x 10-10 Torr)

• Male to male connection

• Bakeable to 250°C

• Gold plated pins

• Rating. 500V, 5 A per pin (max 20% of pins)

UHV, bakeable 15-way female D-sub connector. The connector mates with the VF15D-63CF feedthrough.

Overview

• 15-way D-sub female connector suitable for use in UHV

• Suitable for use to 1.3 x 10-10 mBar (1 x 10-10 Torr)

• PEEK construction

• Bakeable to 250 °C

• Mates with the VF15D-63CF electrical feedthrough

• Supplied with gold plated crimp connectors

Crimp-contacts and tools for use with the D-sub connectors.

Overview

• Bag of 10 replacement d-sub female pins

• 20-24 AWG

• UHV compatible

• For use with VC9DF connector

• Crimp tool
